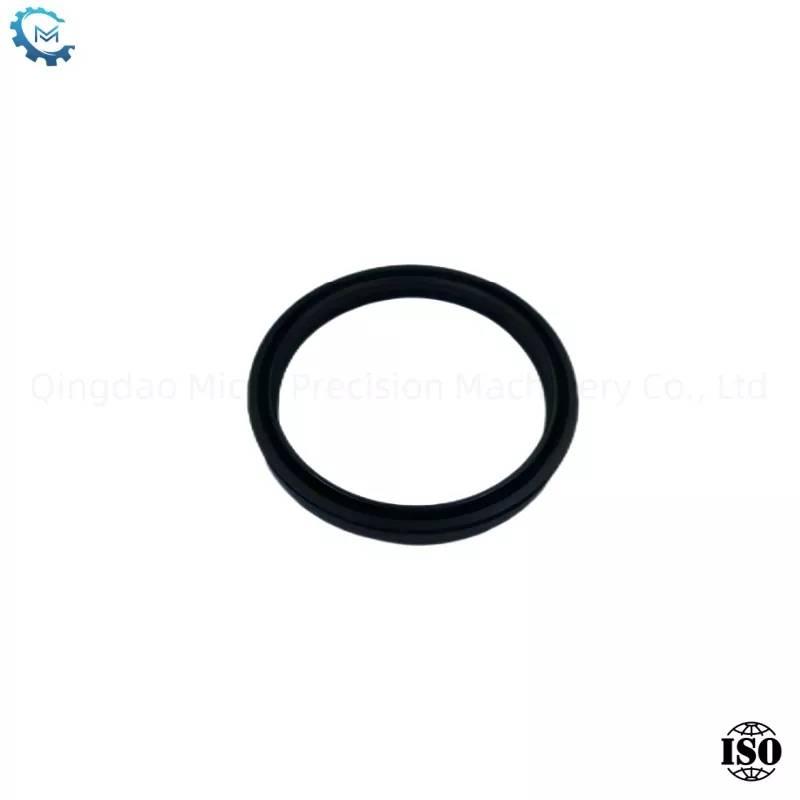

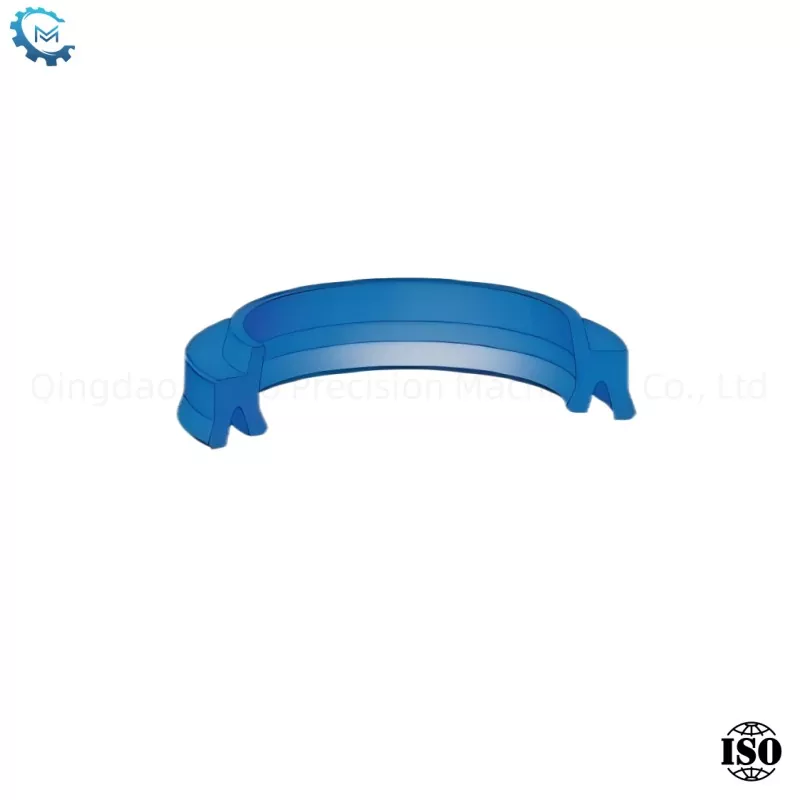

ဖုန်သံ MPMDHS စီးရီး

အပြီးသတ်

RTMAX (တ)

ဗြိတိန် (အမေ)

Slidingsurface

≤2.5

0.1-0.5

groovebott

≤6.3

≤1.6

စိတ်အေး

≤15

≤3

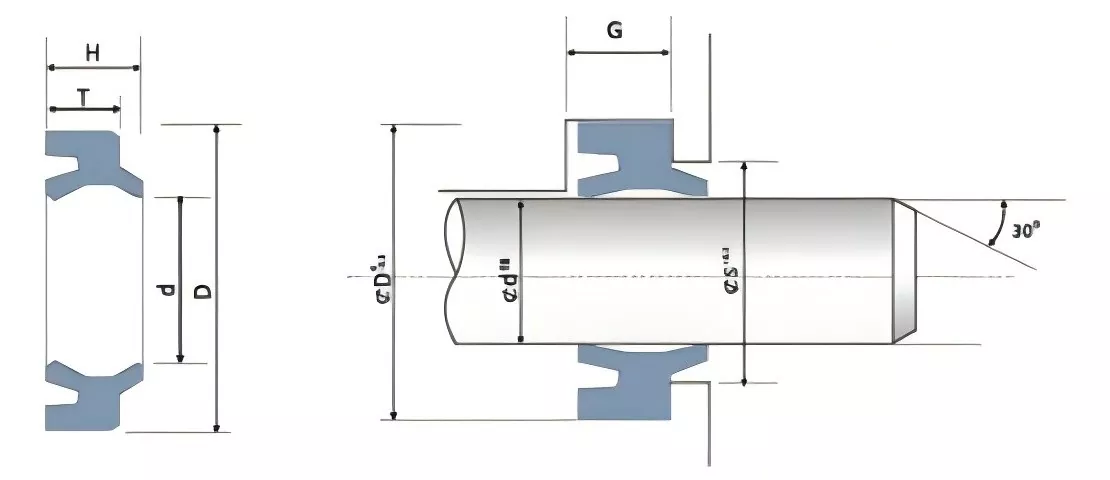

ပုံစံ

groove အရွယ်အစား

ref ။ မဟုတ်

φd

φd

φs

T

H

G

B

dhs0011b

11.2

19.2

15.5

4.5

6.0

5

2

dhs00012

12

20

16.3

4.5

6.0

5

2

dhs0012e

12.5

20.5

16.8

4.5

6.0

5

2

dhs00014

14

22

18.3

4.5

6.0

5

2

dhs00016

16

24

20.3

4.5

6.0

5

2

dhs00018

18

26

22.3

4.5

6.0

5

2

dhos00020

20

28

24.3

4.5

6.0

5

2

dhs00022

22

30

26.3

4.5

6.0

5

2

dhs00022d

22.4

30.4

26.7

4.5

6.0

5

2

dhs00023e

23.5

31.5

27.8

4.5

6.0

5

2

dhs00025

25

33

29.3

4.5

6.0

5

2

dhs00028

28

36

32.3

4.5

6.0

5

2

dhos00030

30

38

34

5

6.5

6

2

dhos00031e

31.5

39.5

35.5

5

6.5

6

2

dhs00032

32

40

36

5

6.5

6

2

dhos00035

35

43

39

5

6.5

6

2

dhs00035s

35.5

43.5

39.5

5

6.5

6

2

dhos00036

36

44

40

5

6.5

6

2

dhs00038

38

46

42

5

6.5

6

2

dhos00040

40

48

44

5

6.5

6

2

dhos00045

45

53

49

5

6.5

6

2

DHS00050

50

58

54

5

6.5

6

2

DHS00053

53

61

57

5

6.5

6

2

dhs00055

55

63

59

5

6.5

6

2

DHS00056

56

64

60

5

6.5

6

2

dhos00060

60

68

64

5

6.5

6

2

dhos00063

63

71

67

5

6.5

6

2

dhos00065

65

73

69

5

6.5

6

2

dhs00067

67

75

70

5

6.5

6

2

dhs00070

70

80

75

6

8.0

7

3

dhs00071

71

81

76

6

8.0

7

3

dhos00075

75

85

80

6

8.0

7

3

dhs00080

80

90

85

6

8.0

7

3

dhs00085

85

95

90

6

8.0

7

3

dhs00090

90

100

95

6

8.0

7

3

dhos00095

95

105

100

6

8.0

7

3

dhs00098

98

108

103

6

8.0

7

3

dhs00100

100

110

105

6

8.0

7

3

dhs00105

105

115

110

6

8.0

7

3

dhs00110

110

120

115

6

8.0

7

3

dhs00112

112

122

117

6

8.0

7

4

dhs00115

115

125

120

6

8.0

7

4

DHS00120

120

130

125

6

8.0

7

4

dhs10120

120

133

127

7

9.5

8

4

dhs00125

125

138

132

7

9.5

8

4

dhs00130

130

143

137

7

9.5

8

4

DHS00136

136

149

143

7

9.5

8

4

dhs00140

140

153

147

7

9.5

8

4

dhs00145

145

158

152

7

9.5

8

4

dhs00150

150

164

158

7

9.5

8

4

dhs00160

160

174

168

7

9.5

8

4

dhs00165

165

179

173

7

9.5

8

4

dhs00170

170

184

178

7

9.5

8

4

dhs00180

180

193

187

7

9.5

8

4

dhs10180

180

194

188

7

9.5

8

4

dhs00185

185

198

192

7

9.5

8

5

dhs00190

190

203

197

7

9.5

8

5

dhs00200

200

213

207

7

9.5

8

5

dhs00200

200

214

208

7

9.5

8

5

DHS00204

204

248

212

7

9.5

8

5

dhs00210

210

223

217

7

9.5

8

5

dhs00220

220

233

227

7

9.5

8

5

dhs00230

230

244

238

7

9.5

8

5

dhs00250

250

263

257

7

9.5

8

5
